High voltage technology
Room: S 108, S 105A
Phone: +49 351 462-2386
Phone: +49 351 462-2518
After a fundamental modernisation, the "High Voltage Technology" laboratory was handed over on January 18, 2002 for use in teaching and research. A further expansion stage took place in 2005/2006.
Experiments are carried out on the following topics:
- Generation of high test voltages
- Electric gas discharges in homogeneous and inhomogeneous fields with AC / DC
- Pulse voltage test using the up-and-down method (IEC 60060-1)
- Breakdown of solid, liquid and gaseous insulating materials
- Diagnostic procedures in high voltage technology
Possibilities of the high voltage test system
|
High-voltage experiment system for AC, DC and surge voltage | |
|---|---|
| Nominal voltage / nominal power |
AC: 200 kV / 6.6 kVA |
| Nominal voltage / nominal current |
DC: 270 kV / 14 mA |
| Nominal charging voltage / nominal impulse energy | 135 kV / 0.1 kJ |
| Waveform | 1.2 / 50 µs; 250/2500 µs |
|
Partial discharge measuring system (LDS 6) for direct and alternating voltage | |
|---|---|
| Nominal voltage AC | 100 kV |
| Nominal voltage DC | 135 kV |
| Noise level | <1pc |

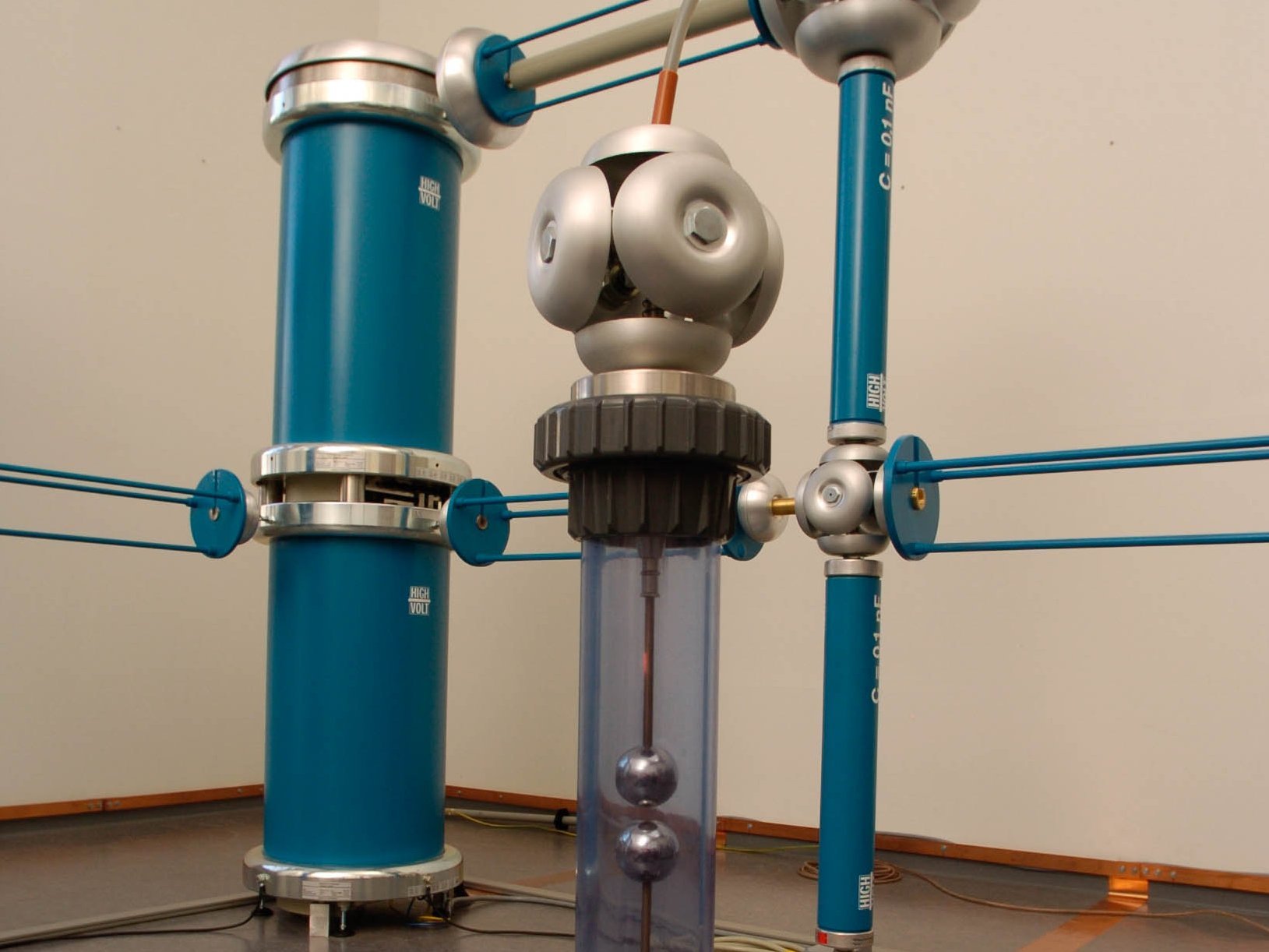

Test objects for the high voltage practical course
| Measuring and test spark gaps | |
|---|---|
| Exchangeable electrodes |
ball electrodes, tip - plate, tip - tip, rod - plate, barrier - arrangement |
| Test objects |
|---|
| Cap insulators, support insulators, measuring spark gap, surge arrester |
| Oil test vessel | |
|---|---|
| Maximum test voltage AC | 200 kV |
| Exchangeable electrodes | yes |
| Pressure and vacuum cylinders | |
|---|---|
| Maximum test voltage AC / DC | 200 kV / 270 kV |
| Operating pressure | 0 ... 5 bar (abs.) |
Supervising professors and laboratory engineers
Prof. Dr.-Ing. Gerd Valtin
- Z 439
- +49 351 462 3790
Ing.-Päd. Bernd Förtsch
- S 108
- +49 351 462 2386
